brake booster repair parts needed-Japan version

[genphreak]

Basically many people are looking for a repair kit.... the question is in general who can supply? Once we have an address, price and cope of supply, I will distribute it in Europe, Asia and some smaller boards to contact these companies directly.

Have you been to http://www.ate.de?
You might need all 3kg of this however they have an online parts catalogue, tho it couldn't get much worse than tecdoc.net

I was checking it out and copied all the relevent info I could see from there out for you- just see below for the parts that were described.

They also have this; (probably your best bet); if you can get a login it might help you to get what you need.
The CustomerClub is an area only accessible to our customers. In this closed area our customers themselves can get information whichs helps them with their daily work. If you are one of our customers and still have no entrance, please contact your ATE partner.

Partners are all over the place- I know one here in Australia but surely one closer to you can get the details you need. They'd at least have the catalogue you could look through... let mw know if you really need one, I could just get it- but its not like I have any favours lined up with these guys. Good luck, Nick

GEORG GROTJAHN (S) PTE. LTD.
SG 208787 Singapore / Sim Lim Tower
10, Jalan Besar # 15-02
Phone: 6292 5359
Fax: 6292 1009

WORLDPAC
USA Newark CA 94560-5522
37137 Hickory Street
Phone: 510-608-5430
Fax: 510-742-1993
Internet: http://www.worldpac.com

and of course Japan;

SPK Corporation
J - Osaka, 553-0003 / Fukushimaku
5-4 Fukushima 5 Chome
Phone: 06 6454 3871
Fax: 06 6454 0892
Internet: http://www.spk.co.jp

Shiba Lining Co.
J - Tokyo / Minato-Ku
8 1-Chome Higashi-Azabu
Phone: 03 3582 9761
Fax: 03 3584 2113
Email: mkojima@shiba-lining-co.jp

Abe Shokai LTD.
J 101-0053 Chiyoda-Ku, Tokyo
3-2 Kanda Mitoshiro-Cho
Phone: 3 3233 2671
Fax: 3 3291 1298
Internet: http://www.abeshokai.co.jp

Hans International Co. Ltd.
J - Yokohama-shi / Kanagawa-Prefecture
691-1 Sanmai-Cho Kanagawa-Ku
Phone: 45 370 3367
Fax: 45 370 3368
Internet: http://www.hans.co.jp
Email: hans@jb3.so-net.ne.jp

Shinsei Shokai Co., Ltd.
J - Tokyo, 105-0001 / Minato-Ku
3-19-13 Toranomon
Phone: 03 3433 1101
Fax: 03 3433 3408
Internet: http://www.spirit.co.jo

N.E. Trading Co., Ltd. New Empire Trading Co. Ltd.
J - Tokyo 106-0044 / Minato-Ku
29-16, 1-Chome, Higashi-Azabu
Phone: 03 3585 6281
Fax: 03 3585 0863
Internet: http://netrad@jt5.so-net.ne.jp
Email: netrad@jt5.so-net.ne.jp



BRAKE SERVO UNIT ATE 1 till 12/1990 34331156925 Associated vehicles;
10.0144-4234.3 Brake Booster MG Trade Numbers 340014

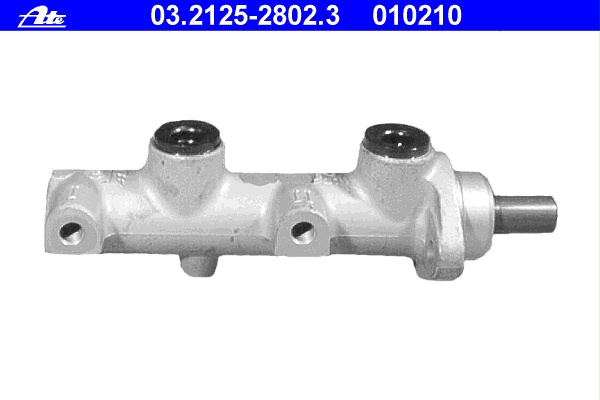

BRAKE MASTER CYLINDER ATE 34311156643 Associated vehicles;03.2125-2802.3

All Manufactured by;
Street Guerickestr. 7 P. O. Box 90 01 20 ZIP (City) 60488 ZIP (P. O. Box) 00060441 Frankfurt Fax 069 / 76 03 - 4818 http://www.contiteves-am.com

Here are some 'UNIVERSAL' ATE parts (on the booster especially a lot of these parts are common to heaps of manufacturers and models) but you must check if they are applicable to your needs)


03.6118-6811.1 Connector Pipe, vacuum hose (Booster vacuum suply Elbow) Trade Numbers: 990030 D1 12 mm, D2 16 mm

03.6197-0253.1 Seal, vacuum hose connector pipe Trade Numbers: 390479 Shape A-shape, Material EPDM (Ethyl-Propylene-Dien-Rubber), Inner Diameter 41,5 mm, Outer Diameter 46,5 mm, Height 2,5 mm

BMW Part 34 31 4 650 345

EAN 4006633097598 Trade Numbers 390479 A-shape Material EPDM (Ethyl-Propylene-Dien-Rubber) Outer Diameter [mm] Seal Diameter [mm] Height [mm] 2,5

03.3319-0300.1 Stop Disc, brake master cylinder
Trade Numbers: 390123 Thickness/Strength 2 mm, Ø 26,9 mm
03.3319-3400.1 Stop Disc, brake master cylinder
Trade Numbers: 390124 Thickness/Strength 3 mm, Ø 20,9 mm
BMW 34 31 4 650 158 [IMG]../img/pixel.gif[/IMG]

Filler Cap, brake fluid reservoir
03.3304-1000.1
Trade Numbers: 390083 Ø 17 mm, Inner Diameter 7,3 mm, Height 13,5 mm, Material FPM / ACM (Viton / Polyachryle-Rubber)
03.3304-1100.1 Filler Cap, brake fluid reservoir
Trade Numbers: 390084 Ø 17 mm, Inner Diameter 6,5 mm, Height 10,5 mm, Material FPM / ACM (Viton / Polyachryle-Rubber)
03.3304-1102.1 Filler Cap, brake fluid reservoir
Trade Numbers: 390085 Ø 17 mm, Inner Diameter 6,5 mm, Height 10,4 mm, Material EPDM (Ethyl-Propylene-Dien-Rubber)
03.3304-2208.1 Filler Cap, brake fluid reservoir
Trade Numbers: 390090 Ø 22 mm, Inner Diameter 12,3 mm, Height 13 mm, Material EPDM (Ethyl-Propylene-Dien-Rubber)

Cap, brake fluid reservoir
03.3506-0016.2 Cap, brake fluid reservoir
03.3518-0602.2 Breather Screw / Valve Trade Numbers: 390348 Thread Size M12x1,5, Length 48 mm, Overall Length [mm] 65, Spanner size 14

and so on.... sorry the html didn't paste in properly here, you'll need to check that nightmare of a catalogue out yourselves... I couldn't see the repair kits anywhere though, you'll probably need to get to the partner or customer care centre for them...

[shogun]

Woahh, that is a long list from you.
My friend in Germany, the Meister of this repair shop which made my hydraulic hoses as you remember, got the ATE parts catalog from someone in ATE, and they could not find these parts as single item, and it was also confirmed by the technical department in ATE.
They only sell new ones.
So the only ones where one could (maybe) get the single wear parts, are these companies which are specialized in remanufacturing and which have their own subsuppliers for these parts.

So we have now sent an email to Cardone in USA and asked them if they can sell separate wear parts instead of complete reman units.
My backyard hack mechanic buddy Mike (BTW: he is also from Australia and lives a long time in Japan) has done it, as he owns a company and maybe it is better they get the inquiry from a company instead of from an individual person.
Let's see what they answer. Will keep you informed.

[genphreak]

Yep defaintely. When I suspected my booster I was keen to do the same. They seem pretty reliable in e34... but I was unlucky in obtaining any parts also, like you.

This is a strange situation, if the catalogue has no such parts in it we're in trouble- but that also means the remanufacturers get very special treatment. I have trouble believing that as this catalogue that the remanufacturers use, but yes, there must be other ways. It is not unlikely that ATE make these parts themselves as they are neoprene and used in so much of what they make... but I agree no matter what there would be others that make them in SE Asia for sure.

If ATE only sell these parts to 'partners' and they do not onsell, it sounds like illegal trade practice- definately in Aus, the US and accross most of the EC, so it begs further analysis... v. interested to hear further if you get closer to the allusive 'truth' Nick

[shogun]

Old thread, but I just found a list with all makers and part theirnumbers in aftermarket for this part number http://www.niparts.com/s_FFFF88/34311156643.html
I recently got a set from Germany from someone who found out last stock for the master cylinder, the original ATE numbers of the seals are 2 pieces 03.3302-0017.1E, 1 piece 3.3402-2508.1E, 1 piece 3.3301-2537.1E . BMW # 34311156643, maker ATE, that is the 25mm version, the smaller 23mm version is on the E30 M3.

I found on Ebay U.K. this kit http://www.ebay.com/itm/BMW-7-Series...910?rmvSB=true
But what is confusing to me is that they talk about Lucas, although my E32 has ATE, quote:
Lucas 25.4mm bore size, Model Type From To Cylinder Type and Bore Size, 7 (E32) 730 i,iL Dec-86 Sep-94 Lucas 25.40 mm, 7 (E32) 730 i,iL V8 Apr-92 Sep-94 Lucas 25.40 mm, 7 (E32) 735 i,iL Sep-86 Sep-92 Lucas 25.40 mm
7 (E32) 740 i,iL V8 Apr-92 Sep-94 Lucas 25.40 mm, 7 (E32) 750 i,iL V12 Sep-87 Sep-94 Lucas 25.40 mm.
Important Information Please read prior to purchase: It is common practise for vehicle manufacturers to fit not only different makes of Master cylinder to the same range of vehicles, but also differing sizes. In most cases this information will be needed to confirm the suitability of a particular kit.The size is normally stamped into the casting, however this is not always visible without removing.Sizes are normally expressed in the major measurment, ie 23.8mm bore cylinders will be stamped 23
unquote

The Ebay seller seems to be specialized on repair kits for brake items like calipers etc http://www.ebay.com/sch/biggred4u/m....e&rt=nc&_dmd=2

Brake booster repair info http://www.bimmernut.com/forum/showt...cement-E32-750
